Overview

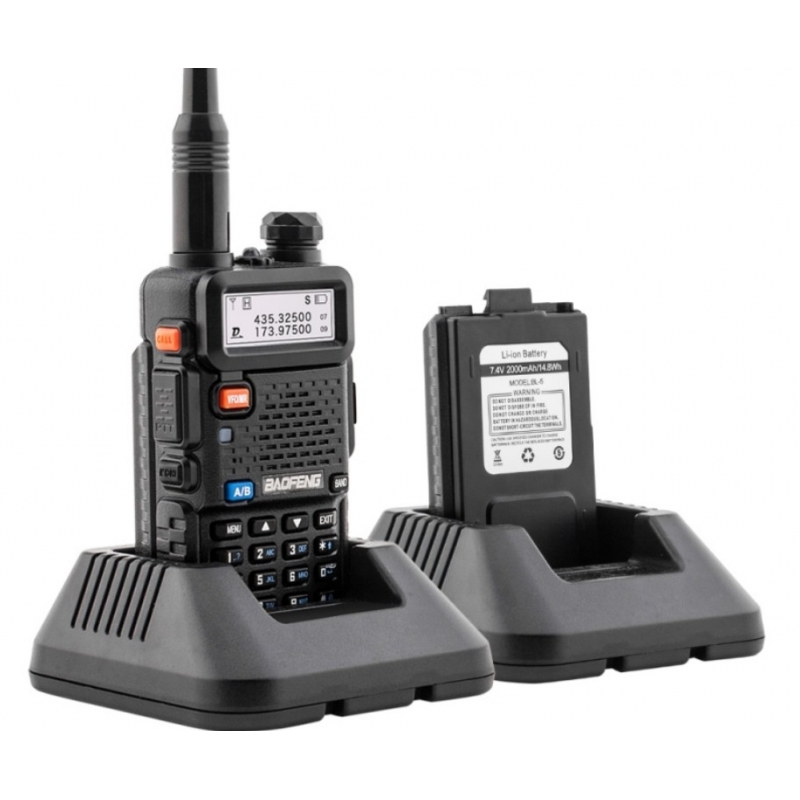

Under DMR model, BaoFeng DM-5R is compatible with digital Tier I & II and analog model, which can meet different communication needs. DMR Tier II covers licensed conventional radio systems, mobiles and hand portables. Two groups of calls are implemented simultaneously at one frequency point, multiplying communication efficiency and saving frequency resources. This digital walkie-talkie uses advanced AMBE 2TM voice processing technology to achieve high sound quality. In addition, it is fully compatible with MOTOTRBO. It is well worth ordering!
Dual time slot, support DMR digital Tier I & II and analog model
Multiply communication efficiency and save frequency resources
Message function, support Chinese and English, convenient to communicate
Use advanced AMBE 2TM voice processing technology
Alarm function
Reduce channel limitation, support UHF400 - 480MHz and VHF136 - 174MHz
Support channel / frequency mode
High and low power switching, save power
CTCSS / CDCSS and sound elimination
Digital tuned FM radio (65 - 108mhz)

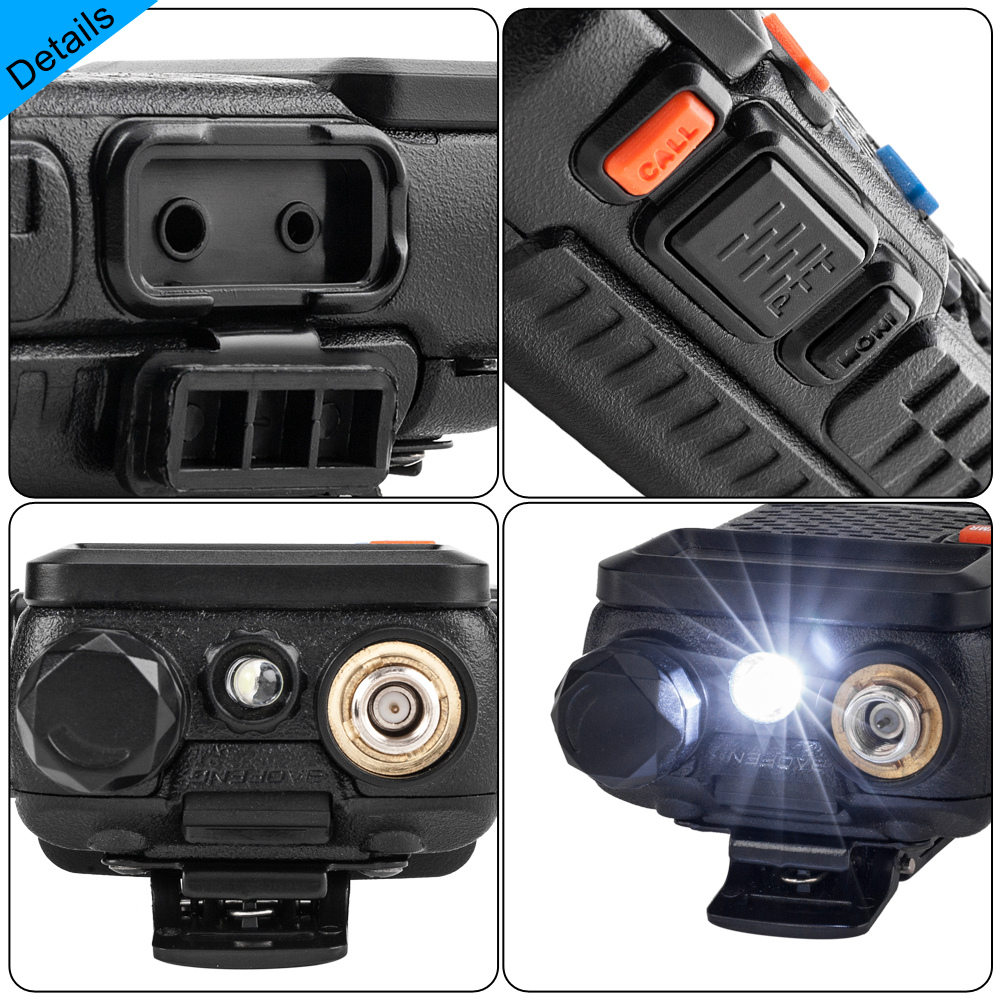

Power lighting function
Compatible with MOTOTRBO
Technical Specs
| General Specifications | |
| Frequency Range | VHF / UHF 136 - 174 / 400 - 480MHz (Dual Band) |
| Storage Channel | 1024 |
| Stepped Frequency | 2.5 / 6.25 / 10 / 12.5 / 20 / 25Khz |
| Operating Voltage | DC7.4V |
| Frequency Stability | ±1.5ppm |
| Operating Temperature | - 20℃~ 50℃ |
| Operating Mode | Same - frequency Simple or Different - frequency Simplex |
| Antenna Imperatuce | 50Ω |

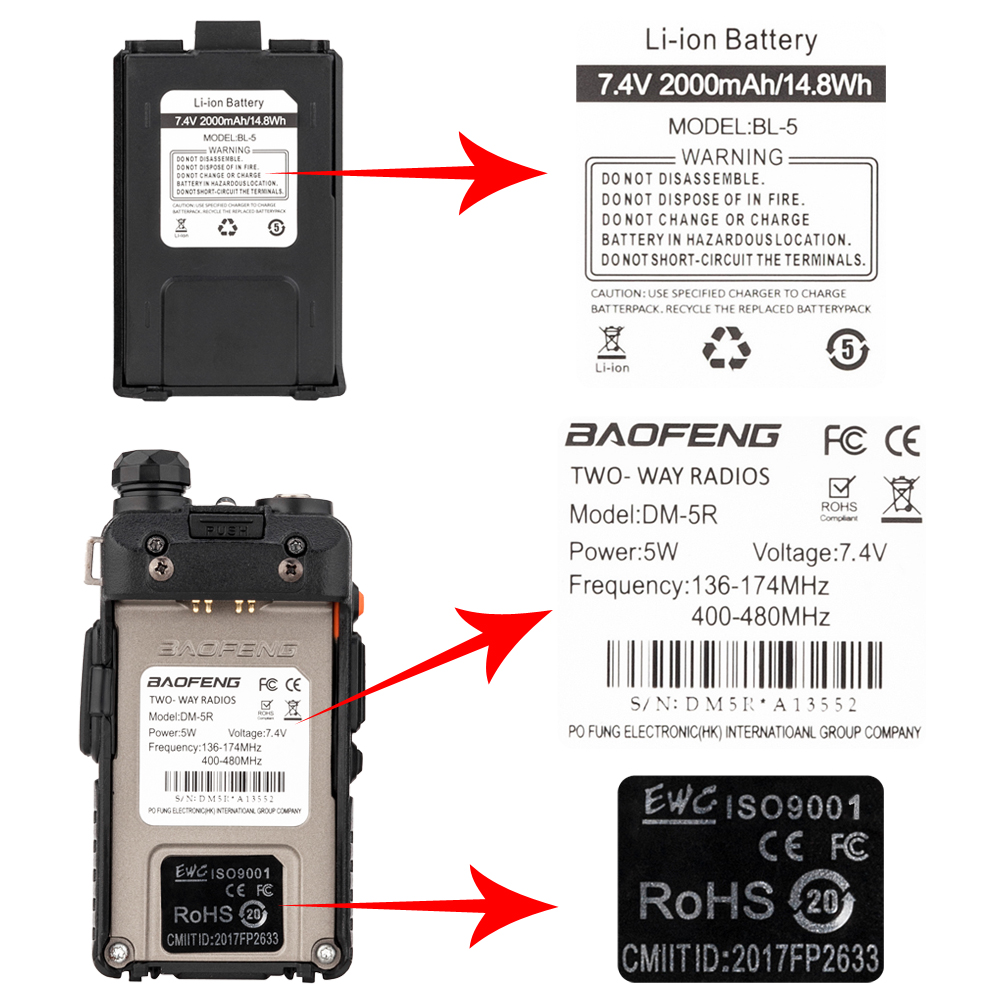

| Battery Capacity | 2000mAh |
| Dimensions | (11.89 x 2.36 x 1.42) " / (30.2 x 6 x 3.6) cm (L x W x H) |
| Weight | 7.58oz / 215g |
| Material | Plastic |
| Color | Black |
| Analog Sensitivity | 122dBm (12dB SINAD) |
| Digital Sensitivity | - 120dBm (BER≤5%) |
| Audio Power | 1W |
| Audio Distortion | ˉ10% |
| Intermodulation | ≥62dB / 58dB |
| Adjacent Channel Selectivity | ≥65dB / 60dB |
| Receiving Current | ≤380mA |
| Output Power | 5W / 1W |
| Modulation | Analog: 1616k耳F3E / 11k耳F3E Digital: 4FSK |
| Maximum Frequency Deciation | 5kHz / 2.5kHz |
| FSK Allowable Error Rate | ≤3% |

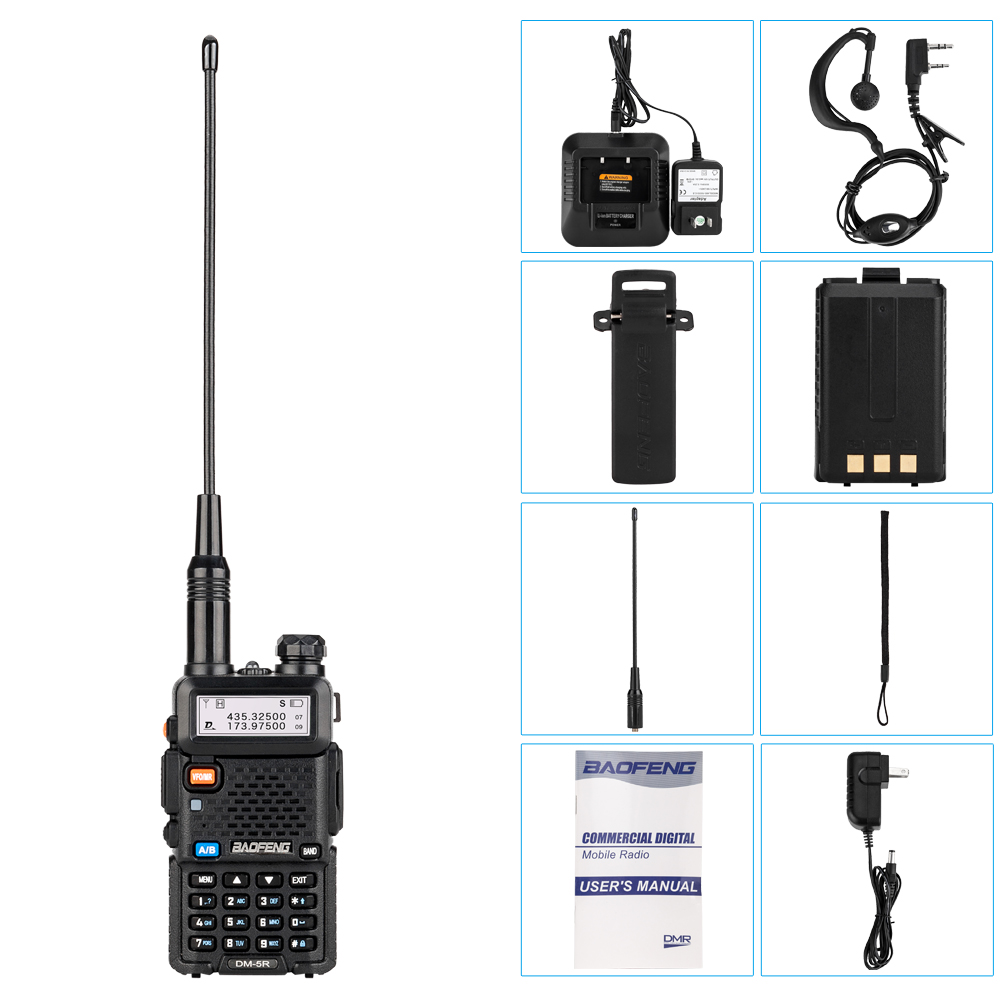

Packing
1 x DM - 5R DMR Radio

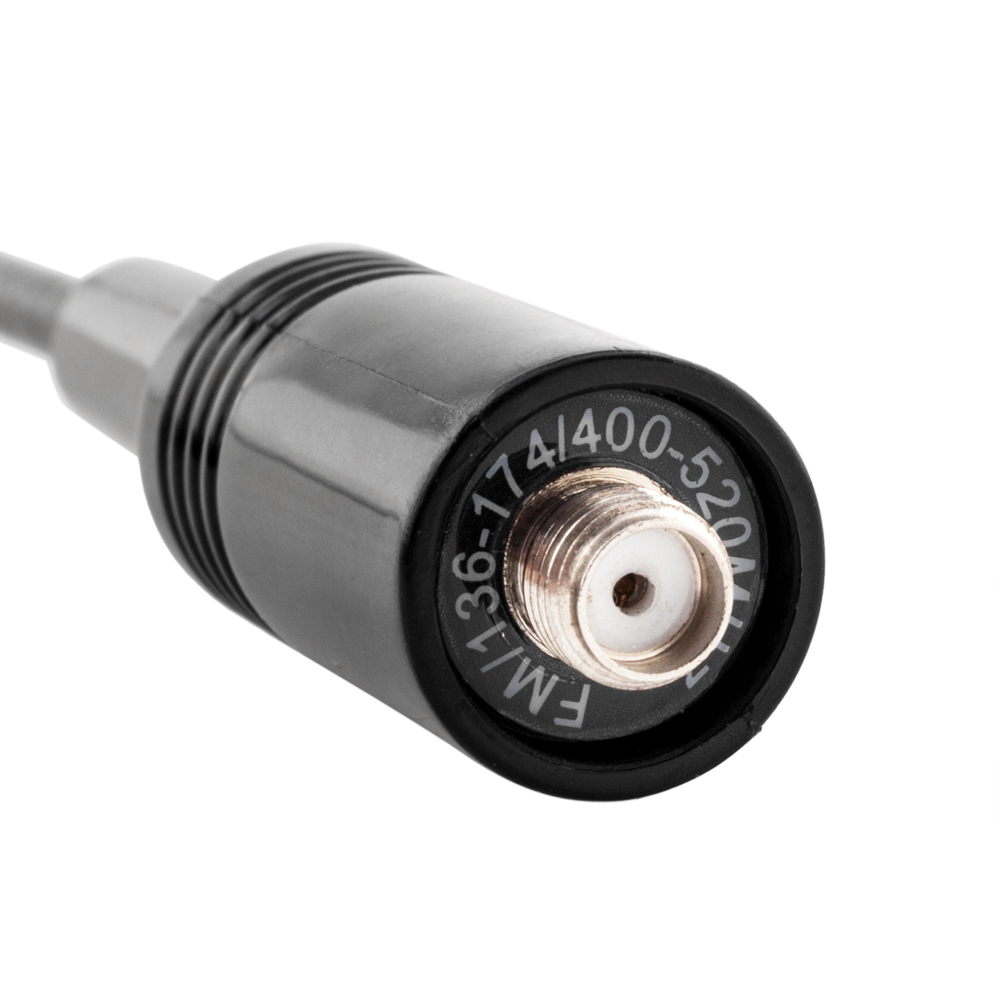

1 x Antenna
1 x Headset
1 x Battery

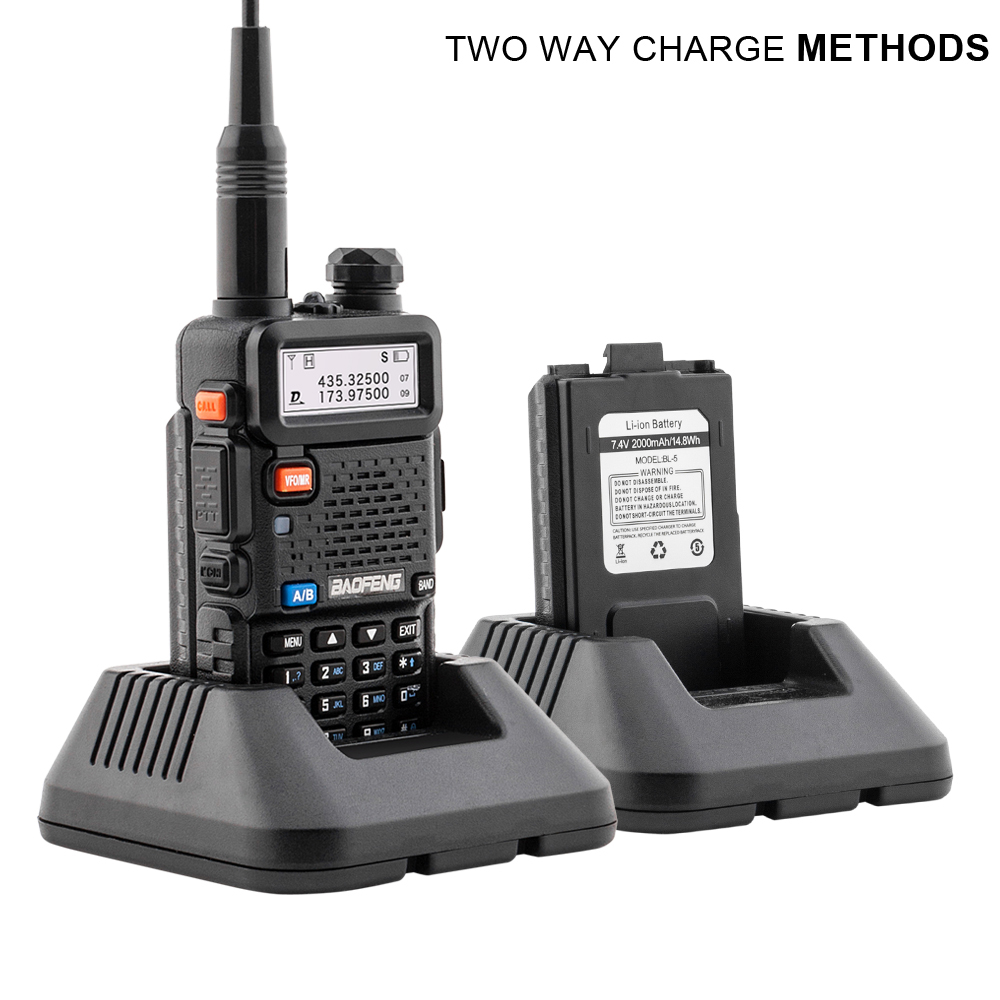

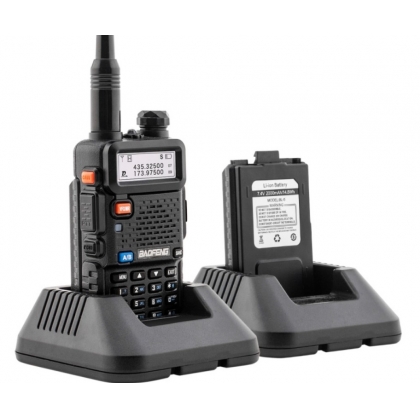

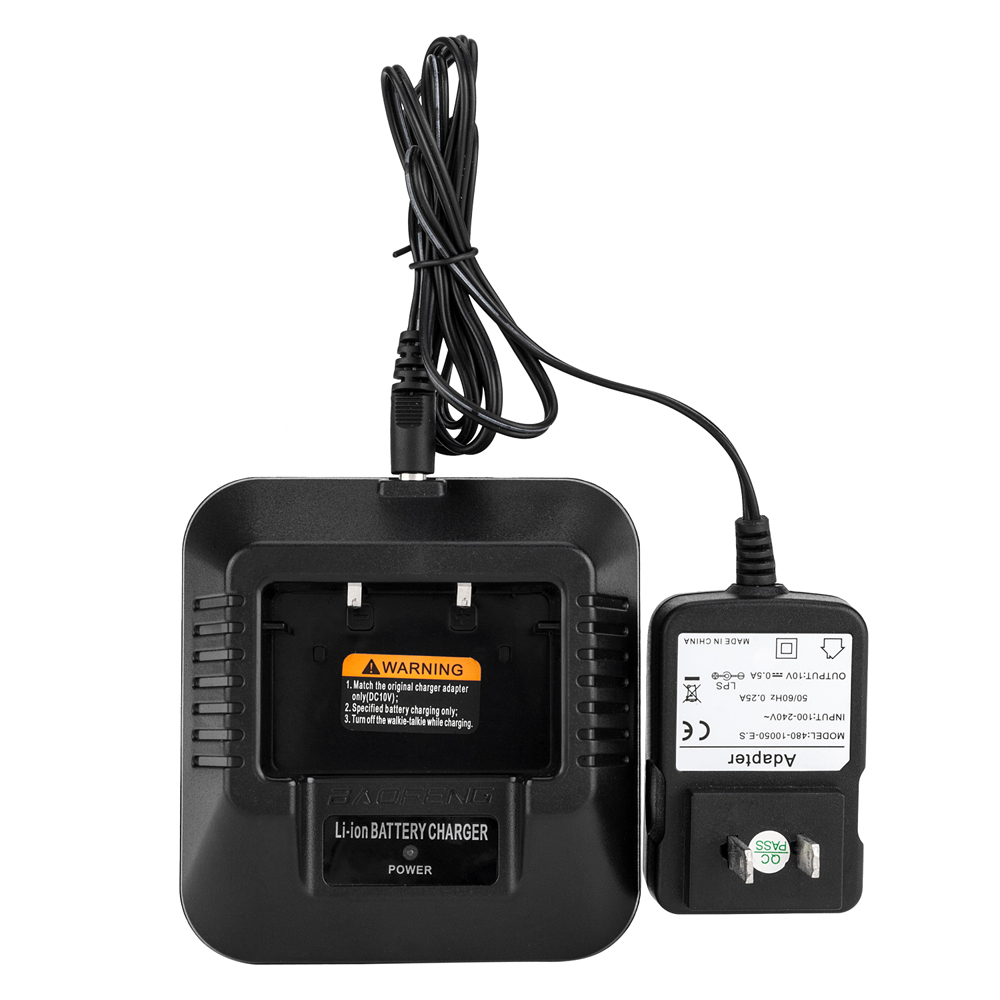

1 x Desktop Charger
1 x Manual
