Overview

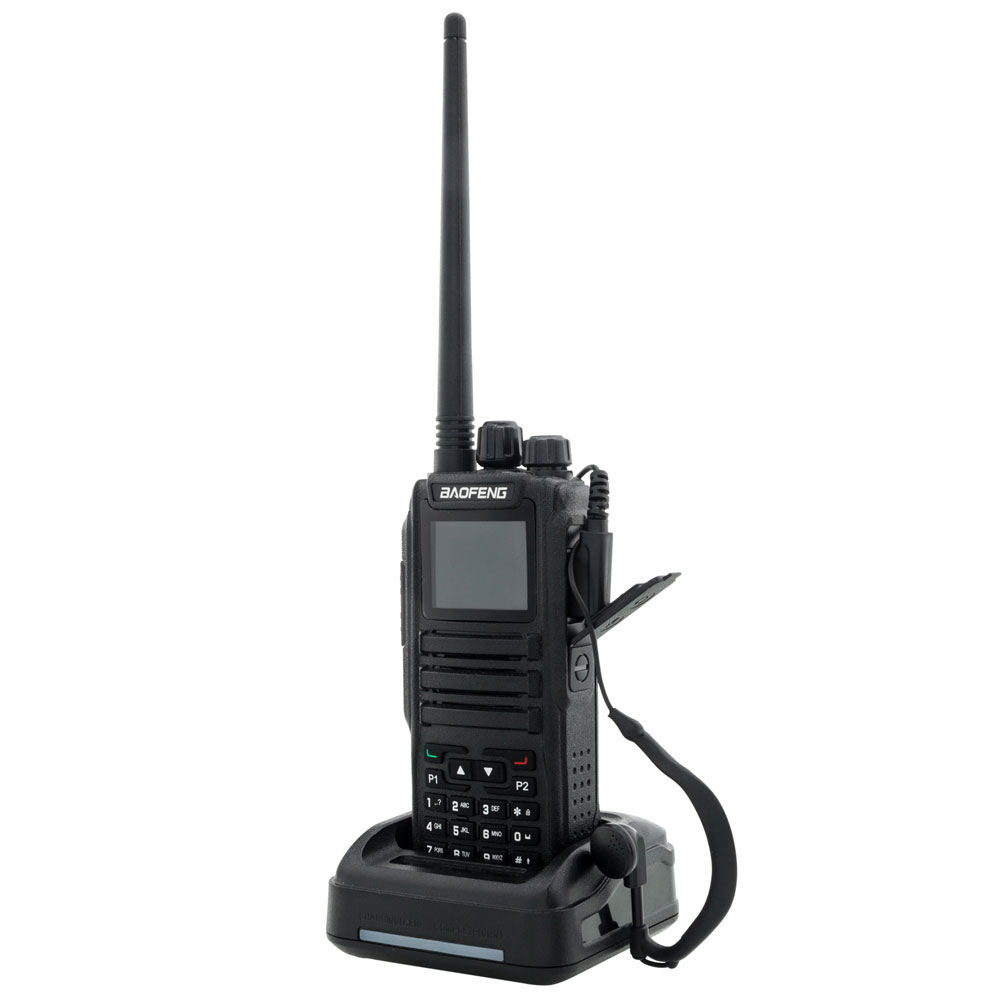

Under DMR model, Baofeng DM-1701 is compatible with digital Tier I & II and analog model, which can meet different communication needs. DMR Tier II covers licensed conventional radio systems, mobiles and hand portables. Two groups of calls are implemented simultaneously at one frequency point, multiplying communication efficiency and saving frequency resources. This digital walkie-talkie uses advanced AMBE 2TM voice processing technology to achieve high sound quality. In addition, it is fully compatible with Hynanda. It is well worth ordering!
DMO True2 - slot dual time slot
Multiply communication efficiency and save frequency resources
Use advanced AMBE 2TM voice processing technology
Digital signaling, SMS, alarm function
Reduce channel limitation, support UHF136 - 174MHz and VHF400 - 480MHz
Support channel / frequency mode
High and low power switching, save power
Power lighting function
Compatible with Hynanda
Technical Specs
| Frequency Range | VHF: 136MHz - 174MHz; UHF: 400MHz - 480MHz (Dual Band) |
| Memory Channels | Up to 300 Channels |
| Frequency Stability | ±1.0ppm |
| Operating Voltage | DC 7.4V |
| Antenna Impedance | 50Ω |
| Operating Temperature | - 30℃ to 60℃ |

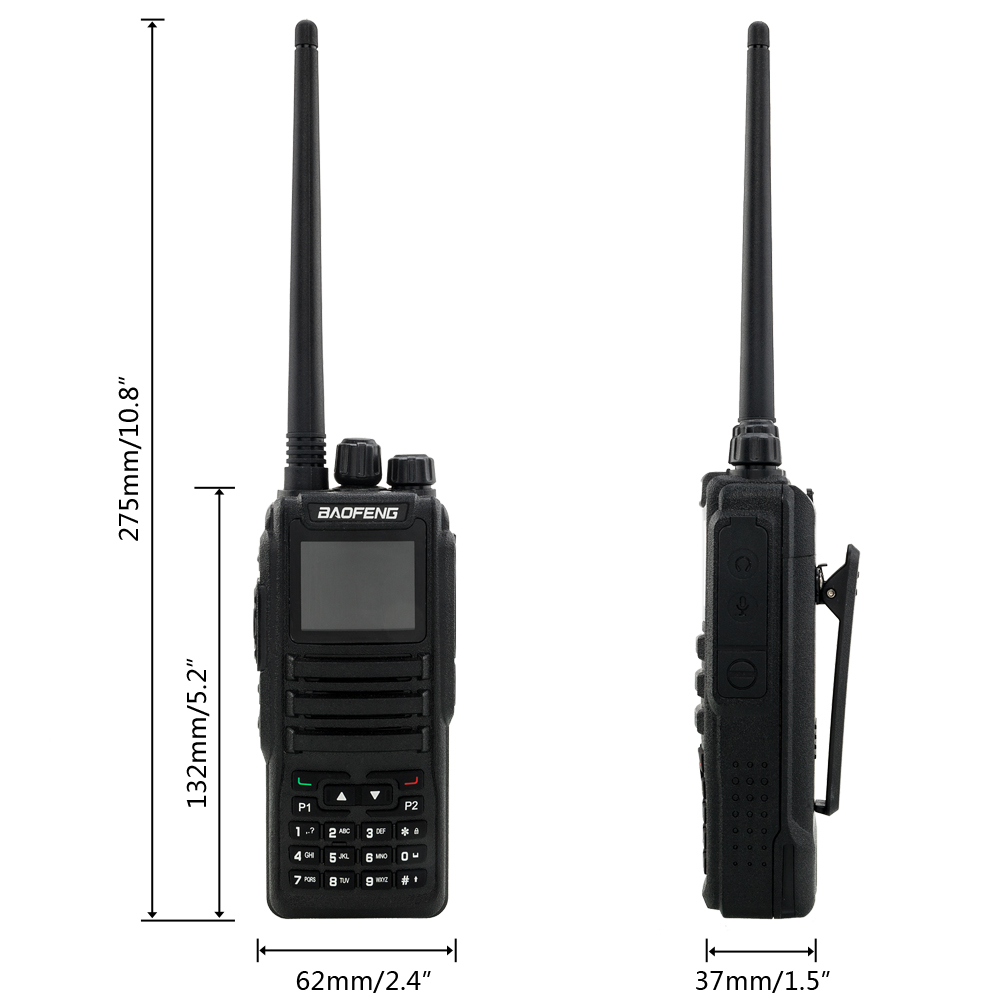

| Dimensions | (5.24 x 2.44 x 1.42) " / (13.3 x 6.2 x 3.6) cm (L x W x H) |
| Weight | 10.58oz / 300g |
| Model | DM - 1701 |
| Ootput Power | High: 5W / Low: 1W |
| Output of Consumption | Analog≤1.6A Didital≤0.9A |
| Consumption | ≤0.18A |
| Modulation Distortion | ≤5% |
| Adjacent Channel Power | ≤ - 65dB ≤ - 60dB |
| Audio Response | 1~3dB |
| Digital Protocol | ETSI - TS102 361 - 1, - 2, - 3 |
| Vocoder Type | AMBE 2 TM |
| FM Modulation | 16K¢F3E@25KHz 141K¢F3E@20KHz 11K¢[email protected] |
| 4FSK Digital Modulation | 12.5KHz for Date: 7K60FXD 12.5KHz for Data and Voice: 7K60FXE |
| Signal - to - noise (Wide / Narrow) | ≥45dB@25KHz ≥[email protected] |
| Antenna Port Spurious | 9KHz - 1GHz: ≤ - 36dBm 1GHz - 12.75GHz: ≤ - 30dBm |
| Analog Receive Sensitivity | - 122dBm (12dB) |
| Audio Power | 1W |
| Digital Receive Sensitivity | SINAD |

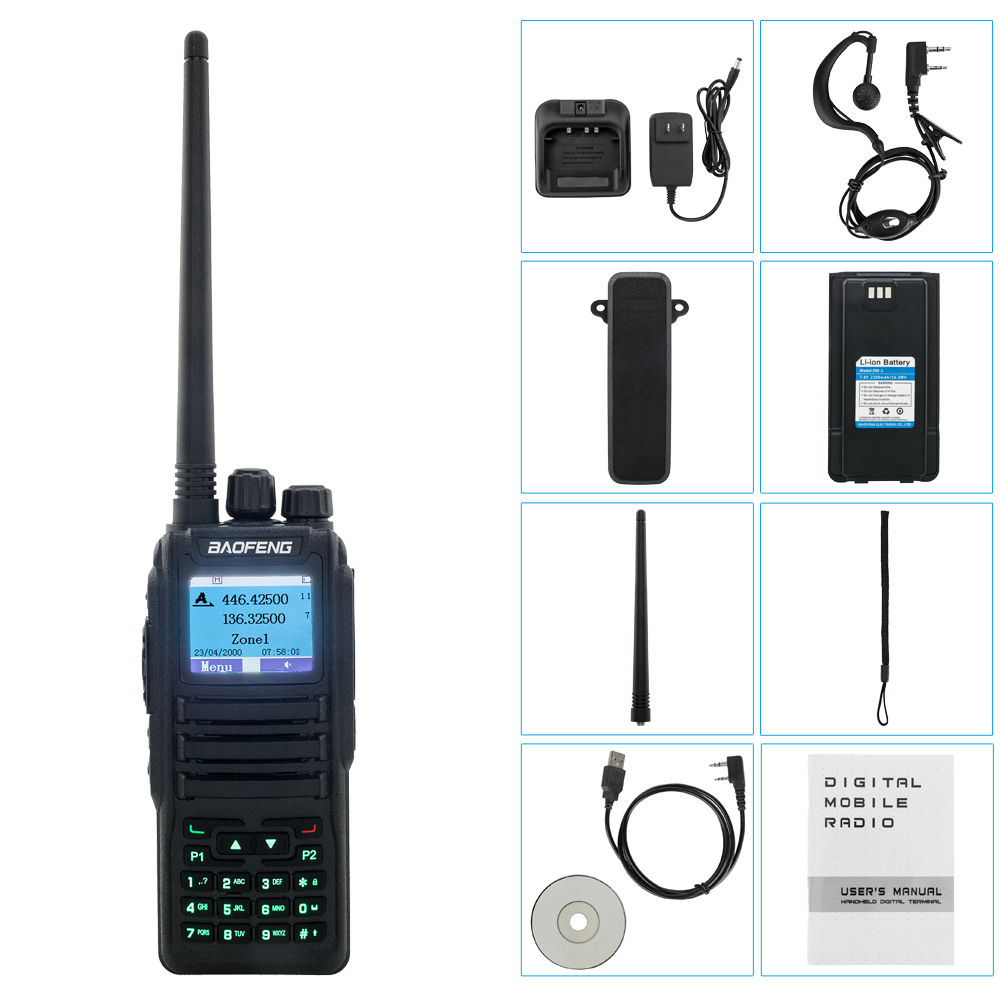

Packing
1 x Walkie Talkie

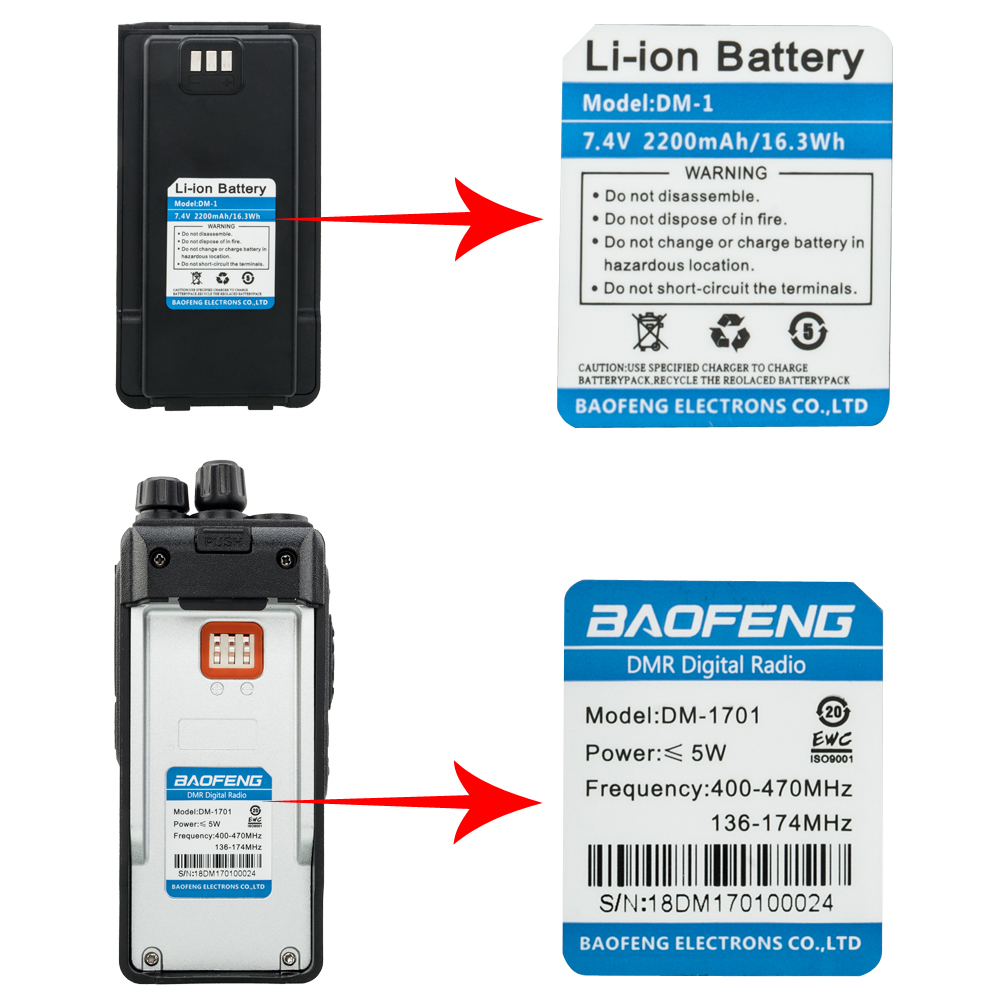

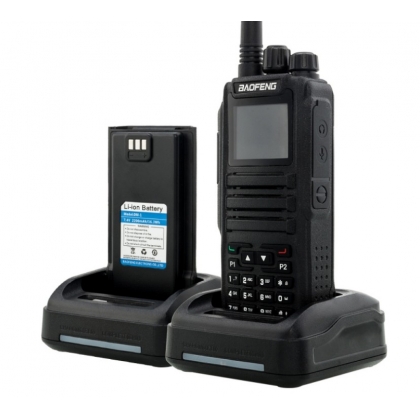

1 x 2200mAh Rechargeable Battery

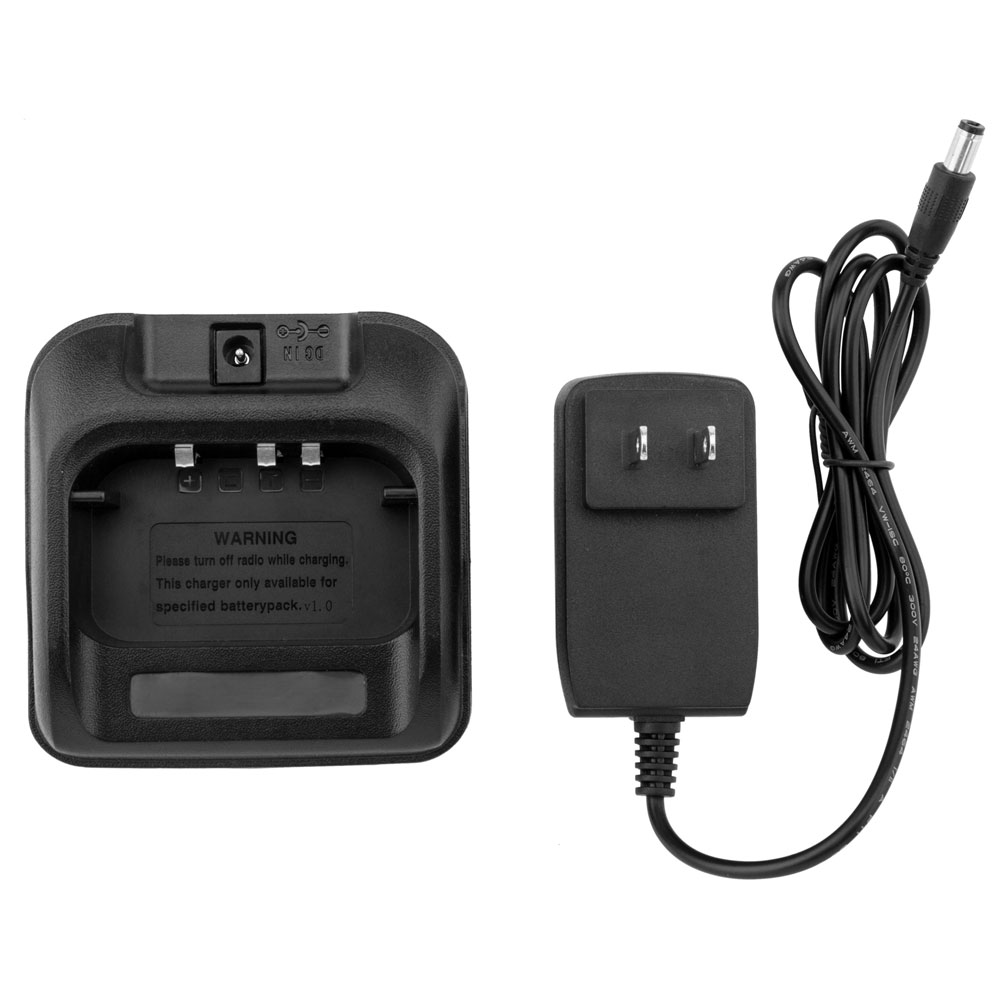

1 x Battery Charger
1 x Antenna
1 x Bracket
1 x English Manual
1 x USB Programming Cable
1 x CD
