DMR Digital Radio Walkie Talkie Hynanda Compatible Baofeng DM-1801 Dual Band Black

DMR Digital Radio Walkie Talkie Hynanda Compatible Baofeng DM-1801 Dual Band Black

DMR Digital Radio Walkie Talkie Motorola Hynanda Compatible Baofeng DM-1801 Dual Band Black

SKU: G88000047
0.0 0 5
Ship From US Warehouse ( Arrivals in 3-7 days ) US_N US_C CN
$89.99

Overview

Under DMR model, Baofeng DM-1801 is compatible with digital Tier I & II and analog model, which can meet different communication needs. DMR Tier II covers licensed conventional radio systems, mobiles and hand portables. Two groups of calls are implemented simultaneously at one frequency point, multiplying communication efficiency and saving frequency resources. This digital walkie-talkie uses advanced AMBE 2TM voice processing technology to achieve high sound quality. In addition, it is fully compatible with Hynanda. It is well worth ordering!

  • DMO True2 - slot dual time slot

  • Multiply communication efficiency and save frequency resources

  • Use advanced AMBE 2TM voice processing technology

  • Digital signaling, SMS, alarm function

  • Reduce channel limitation, support UHF136 - 174MHz and VHF400 - 480MHz

  • Support channel / frequency mode

  • High and low power switching, save power

  • Power lighting function

  • Compatible with Hynanda

Technical Specs

Frequency RangeVHF: 136MHz - 174MHz; UHF: 400MHz - 480MHz (Dual Band)
Memory Channels1024 Channels
Frequency Stability±1.0ppm
Operating VoltageDC 7.4V
Antenna Impedance50Ω
Operating Temperature- 30℃ to 60℃
Dimensions(5.24 x 2.44 x 1.42) " / (13.3 x 6.2 x 3.6) cm (L x W x H)
Weight10.58oz / 300g
ModelDM - 1801
Ootput PowerHigh: 5W / Low: 1W
Output of ConsumptionAnalog≤1.6A Didital≤0.9A
Consumption≤0.18A
Modulation Distortion≤5%
Adjacent Channel Power≤ - 65dB ≤ - 60dB
Audio Response1~3dB
Digital ProtocolETSI - TS102 361 - 1, - 2, - 3
Vocoder TypeAMBE 2 TM
FM Modulation16K¢F3E@25KHz 141K¢F3E@20KHz 11K¢F3E@12.5KHz
4FSK Digital Modulation12.5KHz for Date: 7K60FXD 12.5KHz for Data and Voice: 7K60FXE
Signal - to - noise (Wide / Narrow)≥45dB@25KHz ≥40dB@12.5KHz
Antenna Port Spurious9KHz - 1GHz: ≤ - 36dBm 1GHz - 12.75GHz: ≤ - 30dBm
Analog Receive Sensitivity- 122dBm (12dB)
Audio Power1W
Digital Receive SensitivitySINAD

Packing

  • 1 x Walkie Talkie

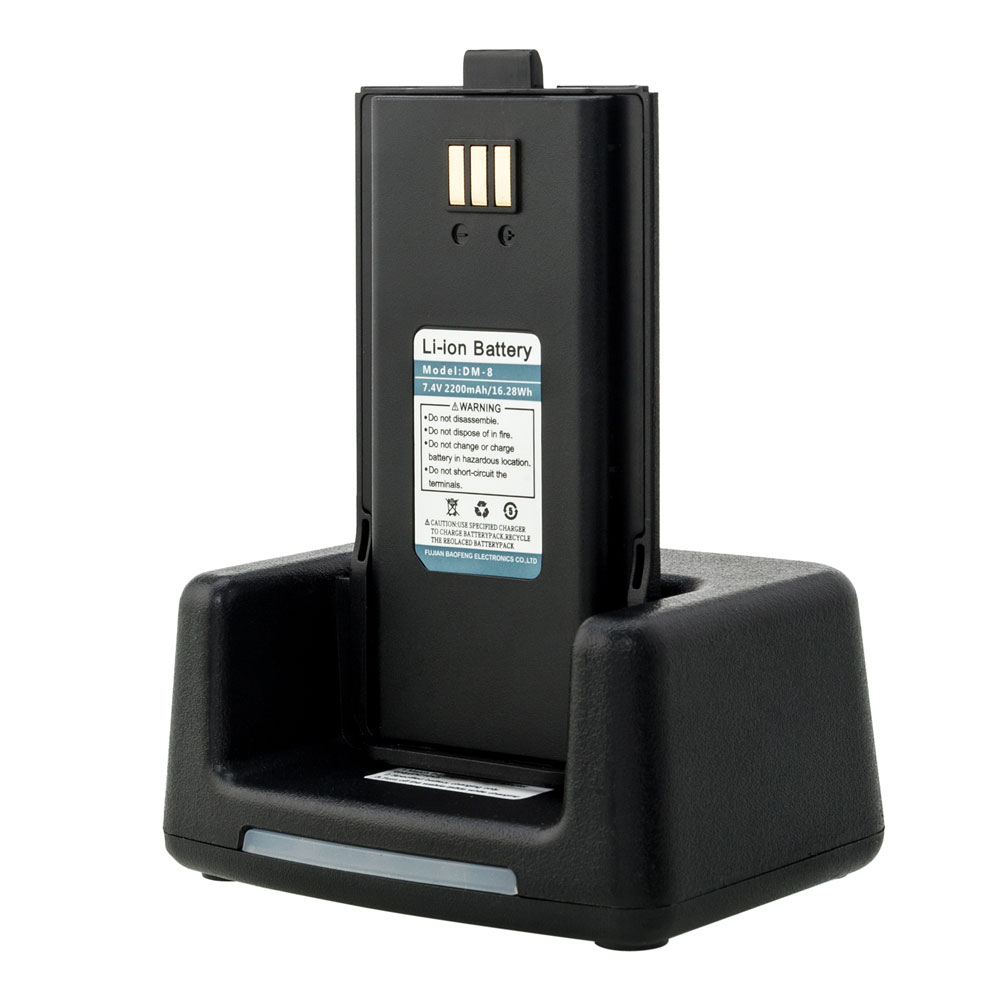

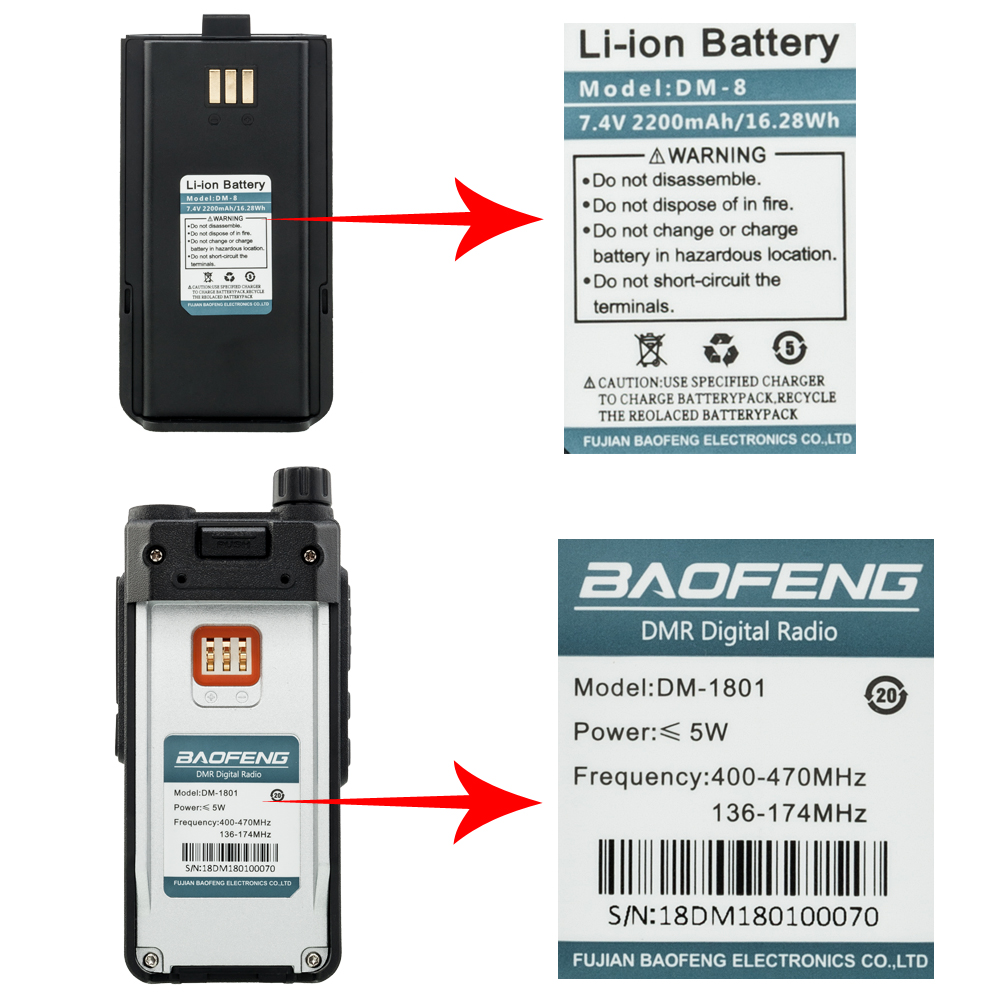

  • 1 x 2200mAh Rechargeable Battery

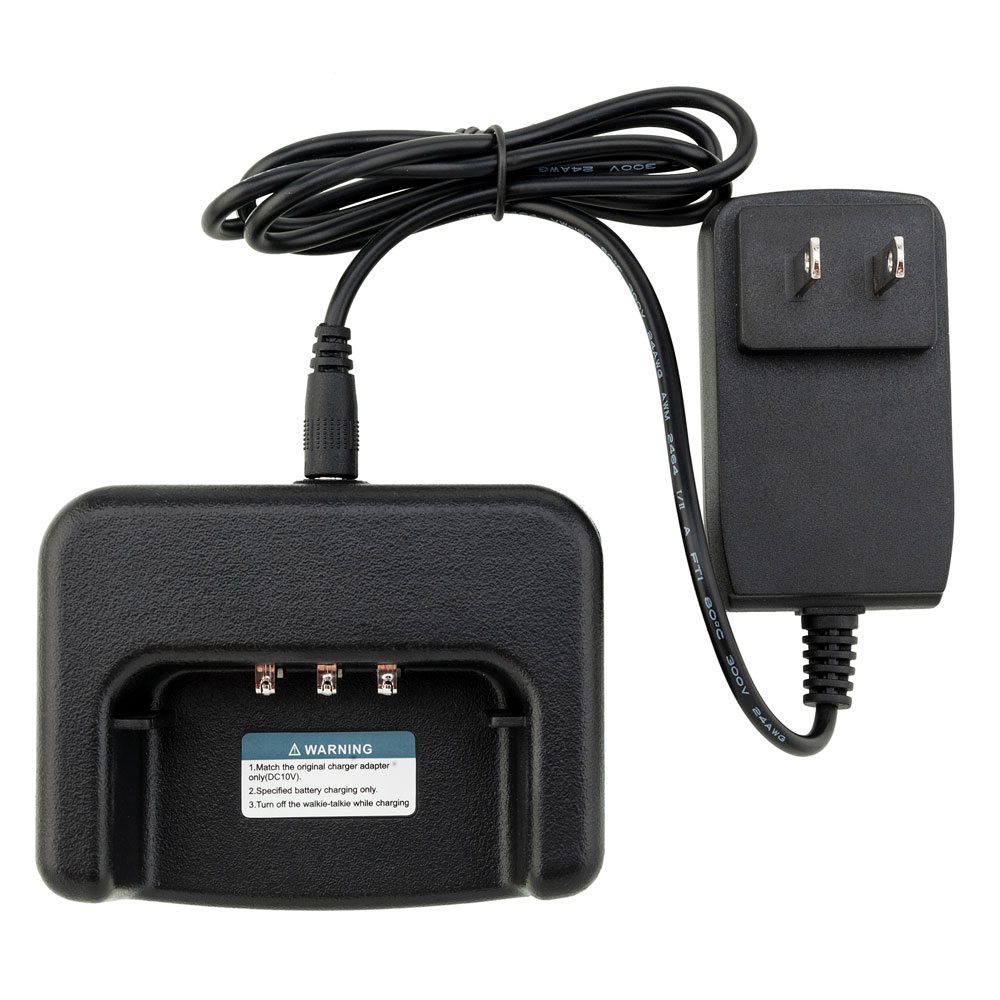

  • 1 x Battery Charger

  • 1 x Antenna

  • 1 x Bracket

  • 1 x English Manual

  • 1 x USB Programming Cable

  • 1 x CD
